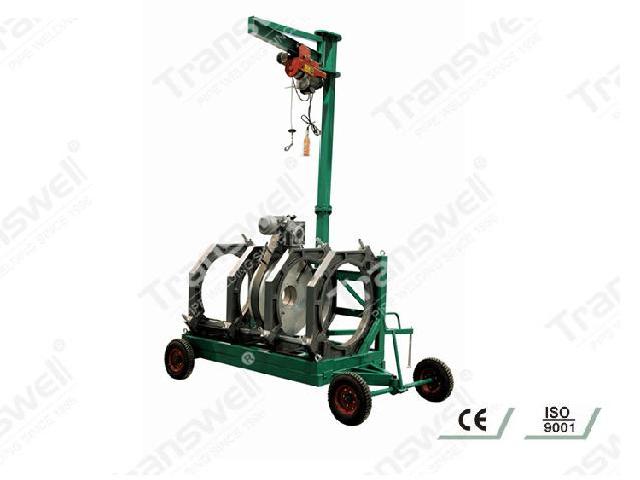

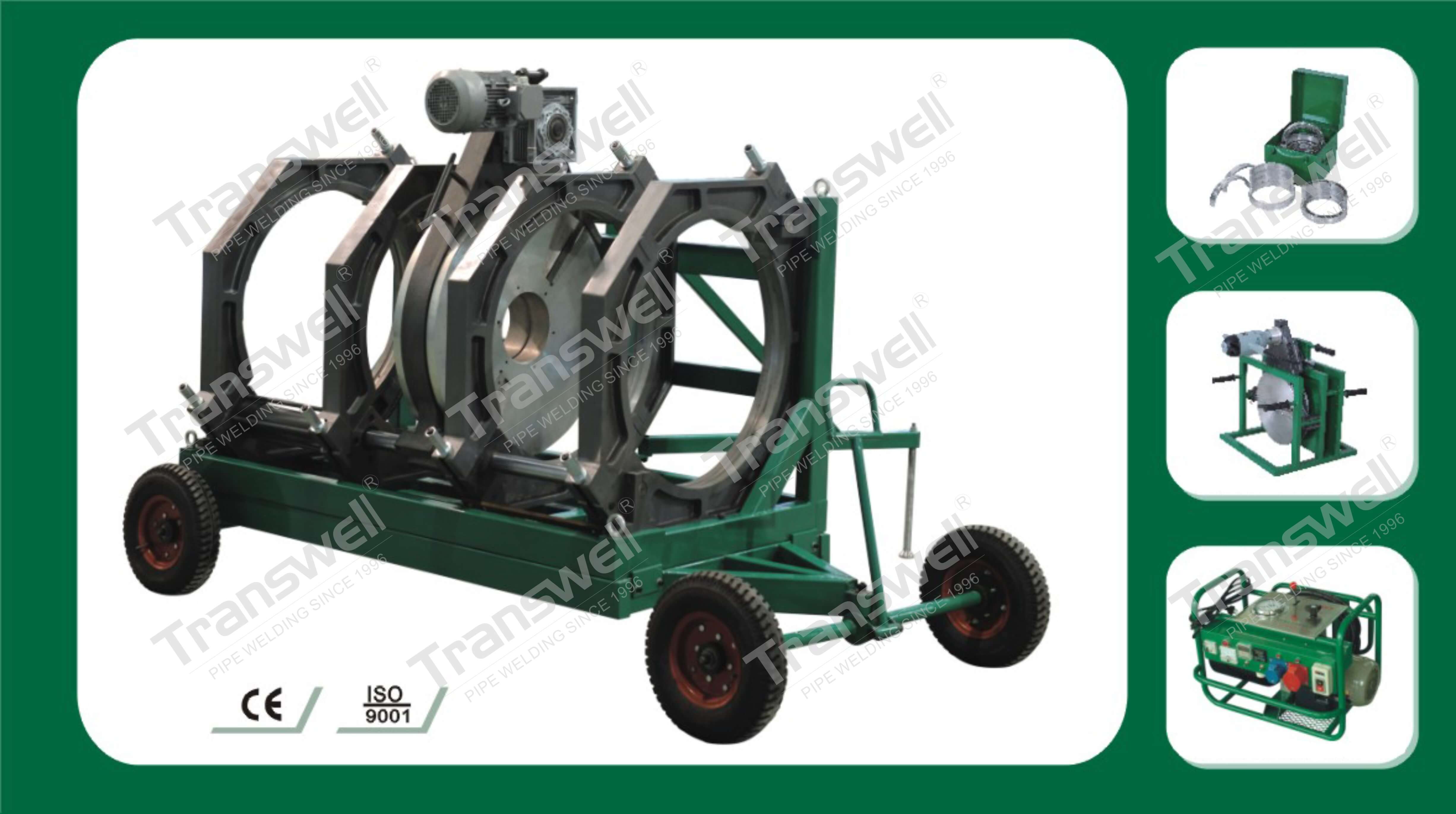

CHDHJ-800 Hydraulic Butt Fusion Machine

☆ Aluminum alloy frame, stable metal base, with twin-cylinder and precise pressure control, suitable fot one man operation and complex working situation.

☆ Portable milling instrument, miniature safety switch(avoid the machine suddenly start) and motor protection fuse.

☆ The PTFE coating heating plate, have intelligent temperature control box, ensure high quality welding.

☆ The holder of milling and heating plate.

Fusing pipe scope 450MM~800MM
Rated voltage A.C 220/230V, 50/60Hz
Power 13500W
Milling power 2800W
Heating power 8500W
Pump power 2200W
Working temperature 0~300℃(PE,PP,PB,PVDF)
Environment temperature -5℃~45℃
Weight of machine 767KG
Cartons per machine 3PC
Carton size 1800*1200*1200/1500*1000*1000/700*530*510 mm
Weight/carton 450/250/67 kg

☆ 1 PCS machine

☆ 1 PCS heating plate

☆ 1 PCS milling tool

☆ 1 PCS hydraulic power unit

☆ 1 PCS holder stand

☆ 1 PCS work bench with wheels*

☆ 1 PCS crane*

☆ 1 Set of reducers D450*,D500,D560,D630,D710
