CHDHJ-630 Hydraulic Butt Fusion MachineAM2023-02-15T15:03:47+08:00

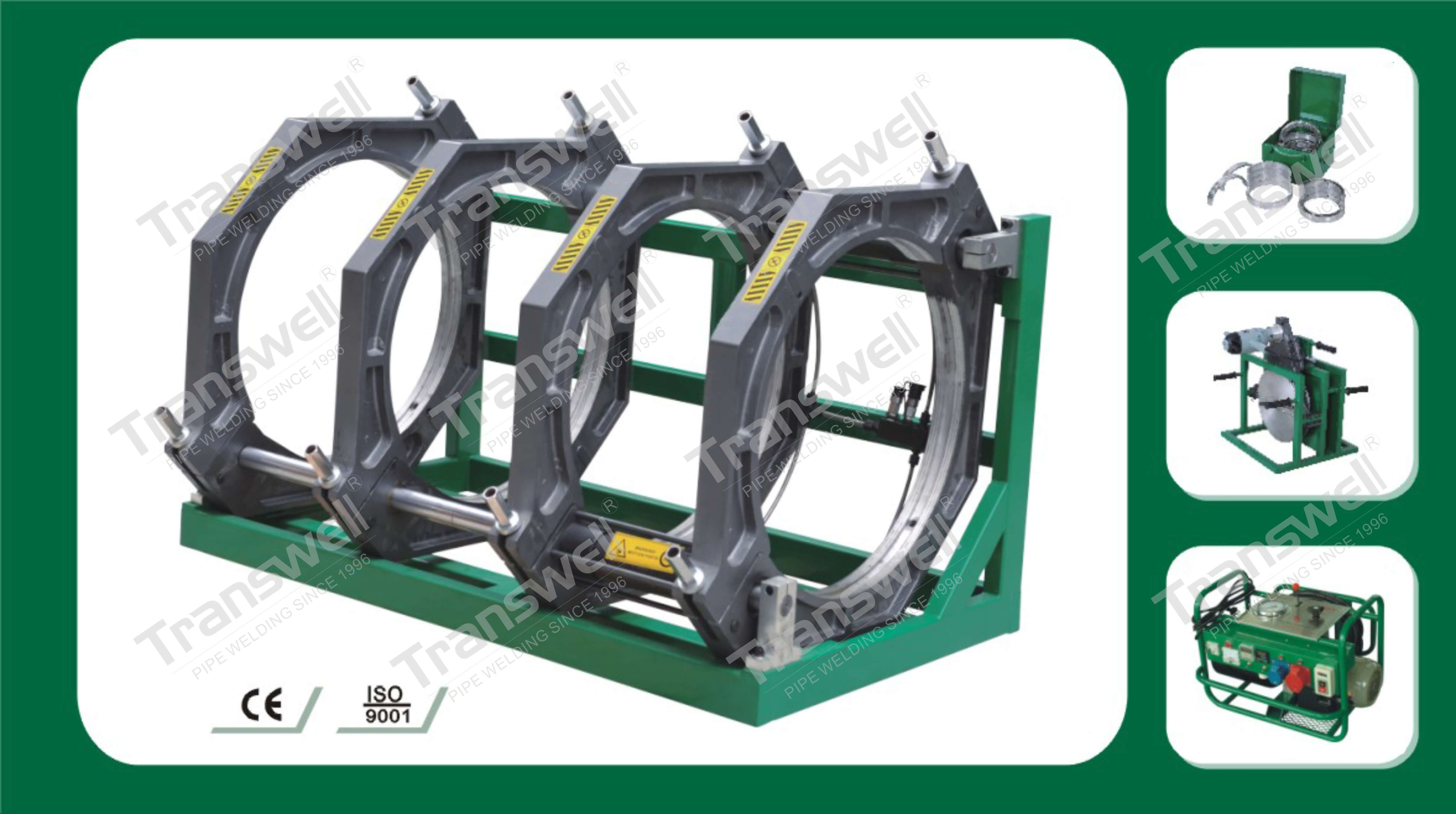

CHDHJ-630 Hydraulic Butt Fusion Machine

☆ Aluminum alloy frame, stable metal base, with twin-cylinder and precise pressure control, suitable for one man operation and complex working situation.

☆ Portable milling instrument, miniature safety switch(avoid the machine suddenly start) and motor protection fuse.

☆ The PTFE coating heating plate, have intelligent temperature control box, ensure high quality welding.

☆ The holder of milling and heating plate.

  • Technical Data

  • Accessories

  • Gallery

  • Technical Data

Fusing pipe scope 315MM~630MM
Rated voltage A.C 220/230V, 50/60Hz
Power 10200W
Milling power 1500W
Heating power 6500W
Pump power 2200W
Working temperature 0~300℃(PE,PP,PB,PVDF)
Environment temperature -5℃~45℃
Weight of machine 678.4KG
Cartons per machine 3PC
Carton size 1480*970*1010/960*640*1200/680*570*510mm
Weight/carton 395/215.9/67.5 kg
  • Accessories

☆ 1 PCS machine

☆ 1 PCS heating plate

☆ 1 PCS milling tool

☆ 1 PCS hydraulic power unit

☆ 1 PCS flange holder*

☆ 1 PCS holder stand

☆ 1 Set of reducers D315*,D355*,D400*,D450,D500,D560
