Project Description

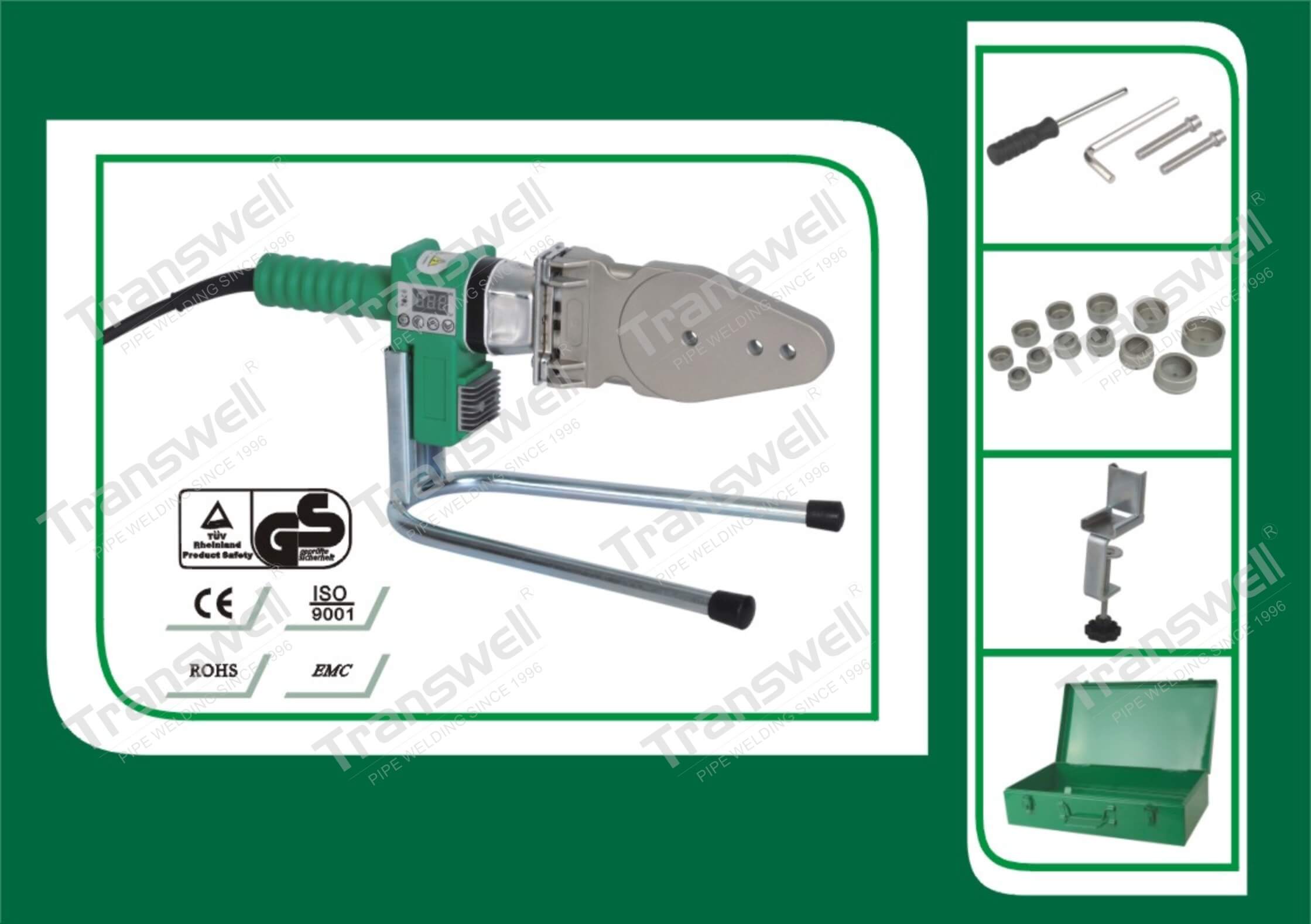

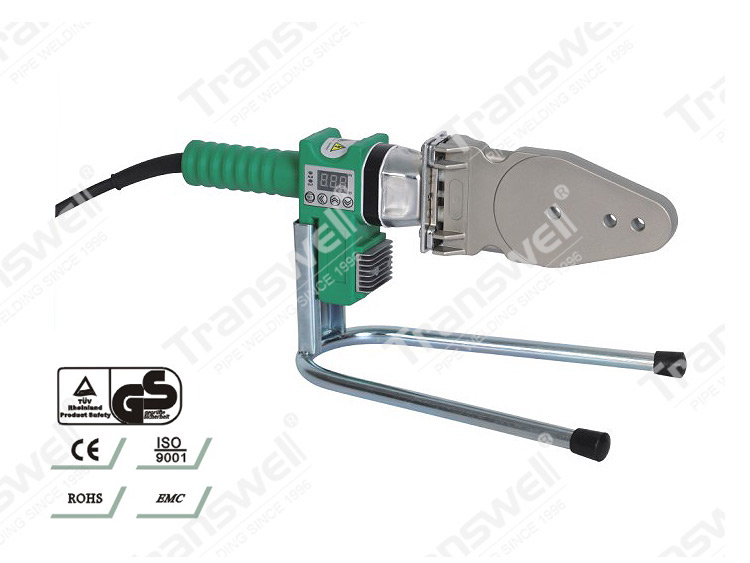

ZRJQ-63N Portable Socket Fusion Tools

☆ Heating plate with teflon coated.

☆ Unique digital display screen, according to the different material, it can adjust the corresponding temperature.

☆ Two kinds of removable supporting stand, welding at multi-directions.

☆ A set of dedicated wrench, convenient to use and carry.

☆ Electronic intelligent control system, it can realize automatic temperature compensation.

☆ Heating interval signal lights.

☆ Thermal insulation handle made of reinforced nylon.

☆ Sockets with high quality adhesive coating, for longer lifetime and great fusion effect.

Fusing pipe scope 20MM~63MM
Rated voltage A.C 220/230V, 50/60Hz
Power 800/870W
Working temperature 200~279℃±3%
Environment temperature -5℃~45℃
Applicable material PP-R、PE、PP、PB、PVDF
Net weight of machine 1.8kgs
PCS/carton 2PCS
Carton size 460*265*265mm
Weight/carton 16.5kg

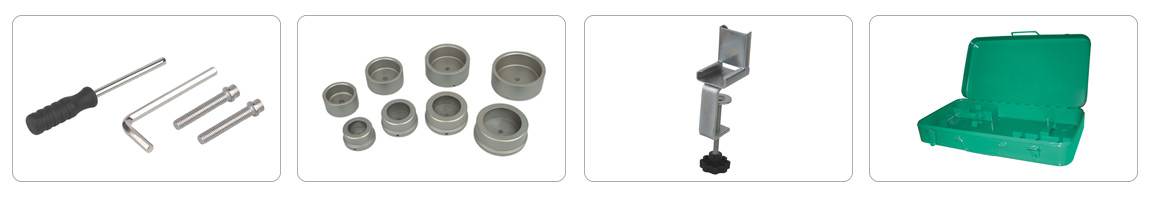

☆ 1 PCS fusion tool

☆ 1 PCS metal case(Big metal case optional)

☆ 1 PCS underpin stand

☆ 1 purchase table-board clamp(optional)

☆ 1 bag of bolts and hex key wrench

☆ Sockets D20, D25, D32, D40, D50, D63(optional)
