Project Description

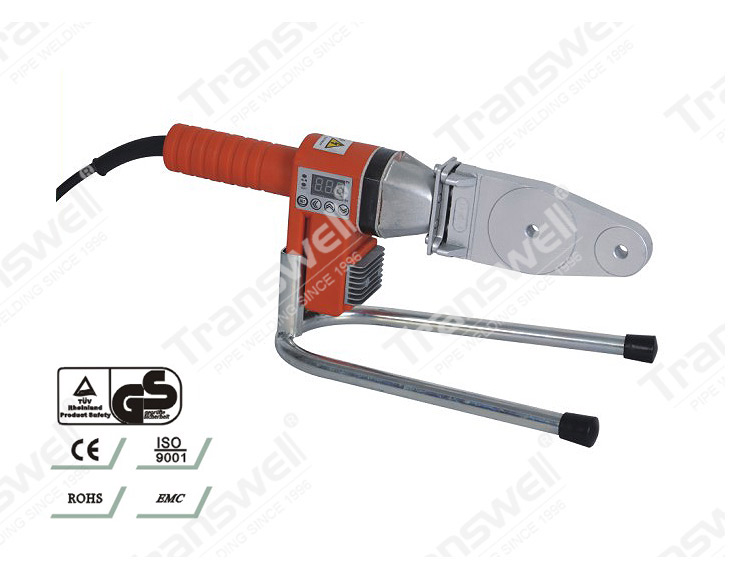

ZRJQ-40 Portable Socket Fusion Tools

☆ Unique digital display screen, according to the different material, it can adjust the corresponding temperature.

☆ Two kinds of removable supporting stand, welding at multi-directions.

☆ A set of dedicated wrench, convenient to use and carry.

☆ Electronic constant temperature controller and indicating light.

☆ Temperature compensation.Heating interval signal lights.

☆ Thermal insulation handle made of reinforced nylon.

☆ Sockets with high quality adhesive coating, for longer lifetime and great fusion effect.

Fusing pipe scope 20MM~40MM
Rated voltage A.C 220/230V, 50/60Hz
Power 600/650W
Working temperature 200~279℃±1%
Environment temperature -5℃~45℃
Applicable material PP-R、PE、PP、PB、PVDF
Net weight of machine 1.6kgs
PCS/carton 4PCS
Carton size 435*360*255mm
Weight/carton 17.5kg

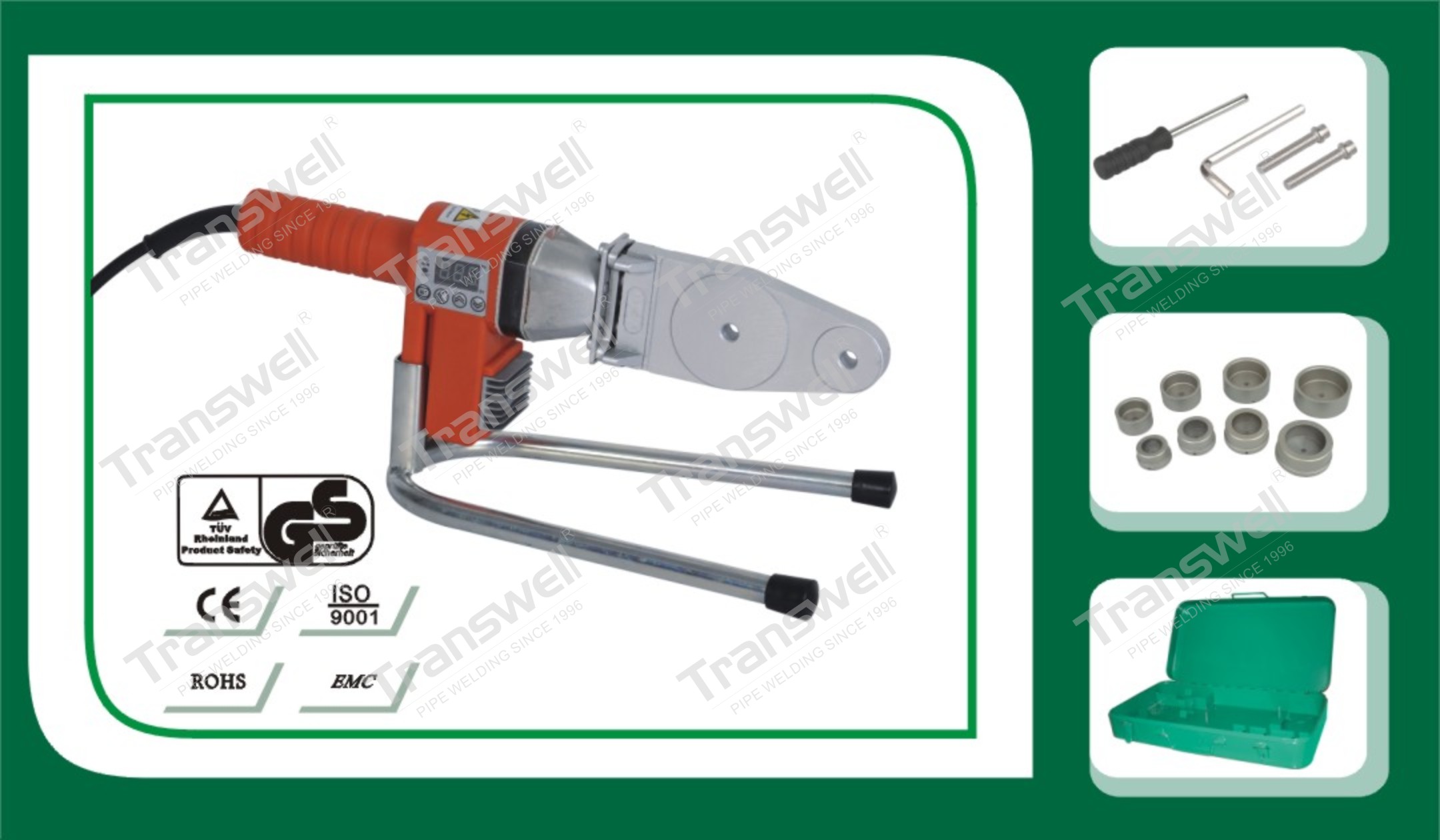

☆ 1 PCS fusion tool

☆ 1 PCS metal case

☆ 1 PCS underpin stand

☆ 1 purchase table-board clamp(optional)

☆ 1 bag of bolts and hex key wrench

☆ Sockets D20, D25, D32*, D40*(optional)
