Project Description

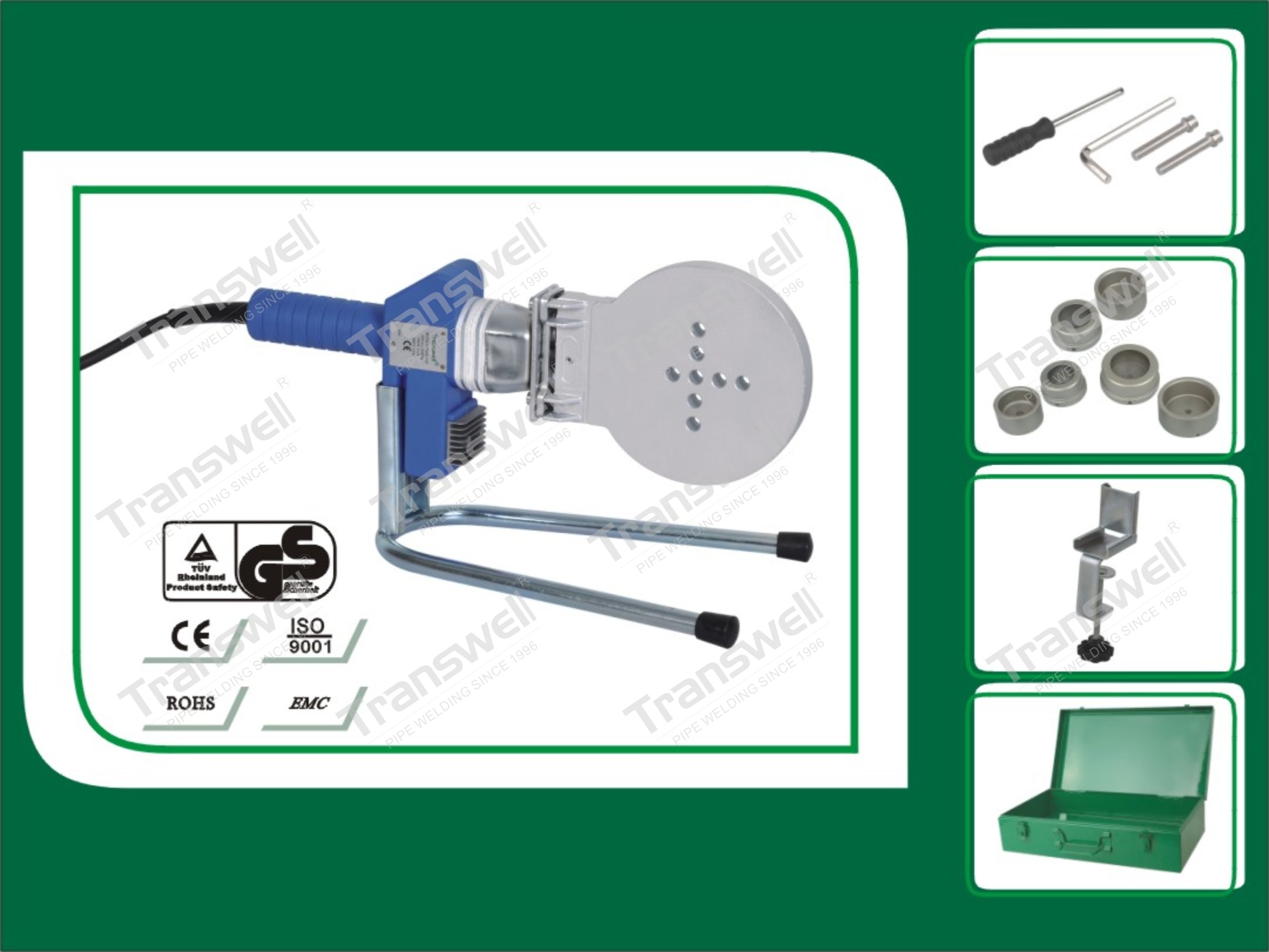

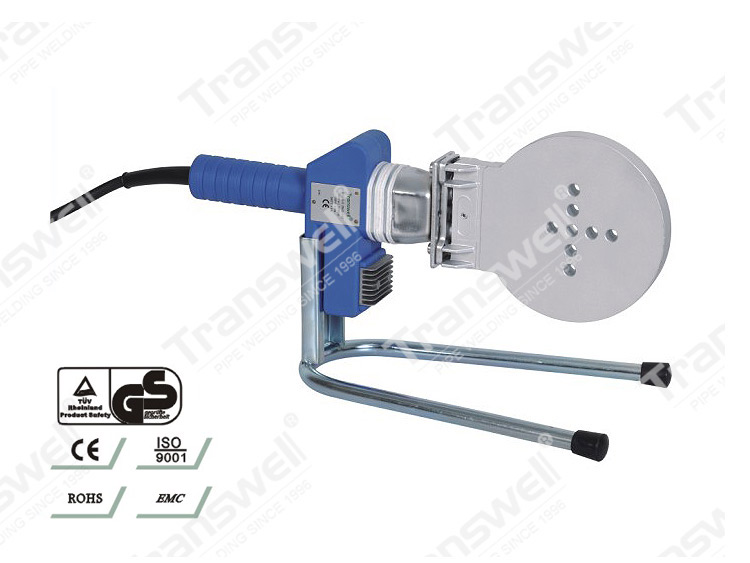

ZRJQ-110T Portable Socket Fusion Tools

☆ Unique digital display screen, according to the different material, it can adjust the corresponding temperature.

☆ Two kinds of removable supporting stand, welding at multi-directions.

☆ A set of dedicated wrench, convenient to use and carry.

☆ Electronic intelligent control system, it can realize automatic temperature compensation.

☆ Heating interval signal lights.

☆ Thermal insulation handle made of reinforced nylon.

☆ Sockets with high quality adhesive coating, for longer lifetime and great fusion effect.

Fusing pipe scope 75MM~110MM
Rated voltage A.C 220/230V, 50/60Hz
Power 1200/1310W
Working temperature 200~279℃±1%
Environment temperature -5℃~45℃
Applicable material PP-R,PE,PP,PB,PVDF
Net weight of machine 2.0kgs
PCS/carton 2PCS
Carton size 460*265*265mm
Weight/carton 21.5kg

☆ 1 PCS fusion tool

☆ 1 PCS metal case(Big metal case optional)

☆ 1 PCS underpin rack

☆ 1 PCS table clamp(optional)

☆ 1 PCS reinforced wrench(optional)

☆ 1 bag of bolts and hex key wrench

☆ Sockets D75, D90, D110(optional)
