Project Description

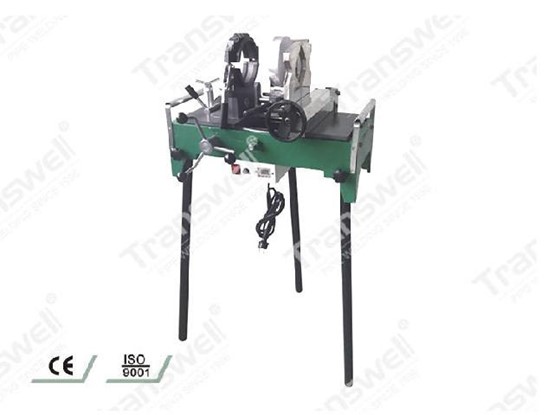

CHHJ-90SC Bench Socket Fusion Machine

☆ Removable tripod stand main frame, convenient for construction site and flat ground.

☆ Intelligent temperature control box, it can weld various material.

☆ Active tripod stand to support the pipe, ensure the high quality welding.

Fusing pipe scope 20MM~90MM
Rated voltage A.C 220/230V, 50/60Hz
Power 1200W
Working temperature 200~279℃±1%
Environment temperature -5℃~45℃
Applicable material PP-R,PE,PP,PB,PVDF
Net weight of machine 76kg
Carton size 800*600*400mm

☆ 1 PCS workbench with electric control system

☆ 1 PCS tripod stand main frame

☆ 1 PCS pipe supporting stand

☆ 1 set of reducers D20,D25,D32,D40,D50,D63,D75

☆ 1 set of exact self-centering spigots D20,D25,D32,D40,D50,D63,D75,D90

☆ 1 set of sockets D20,D25,D32,D40,D50,D63,D75,D90

☆ 1 PCS metal case
