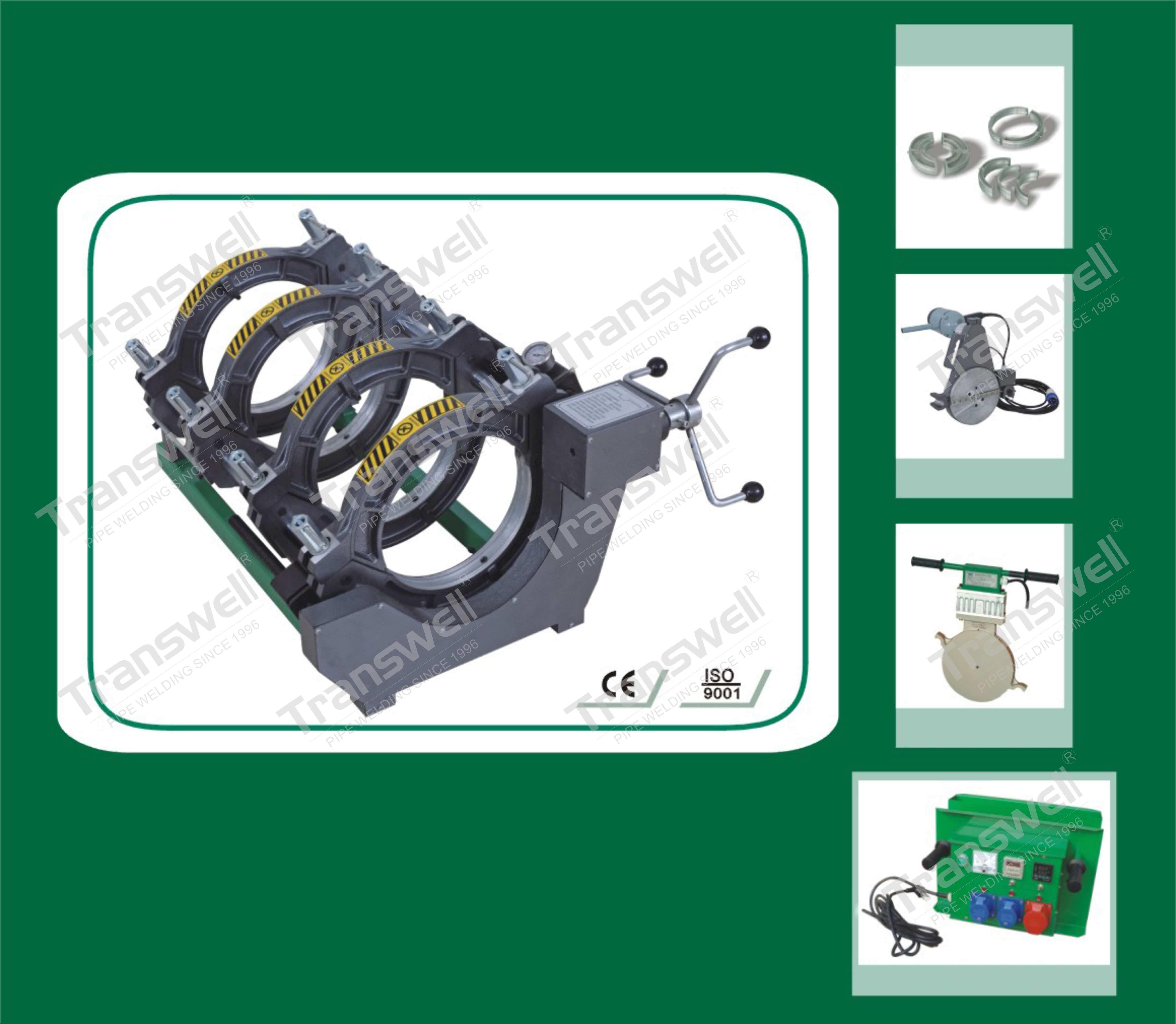

CHHJ-250SA Manual Butt Fusion Machine

☆ Aluminum alloy frame, stable metal base, simple structure, easy to operate, suitable for single and complex working situation.

☆ Portable milling instrument, miniature safety switch(avoid the machine suddenly start) and motor protection fuse.

☆ The PTFE coating heating plate, have intelligent temperature control box, ensure high quality welding.

☆ The holder of milling and heating plate.

Fusing pipe scope 90MM~250MM
Rated voltage A.C 220/230V, 50/60Hz
Power 3100W
Milling power 1100W
Heating power 2000W
Working temperature 0~300℃(PE,PP,PB,PVDF)
Environment temperature -5℃~45℃
Weight of machine 140.4kg
Cartons per machine 2PC
Carton size 920*620*450/780*630*630mm
Weight/carton 80.4/60kg

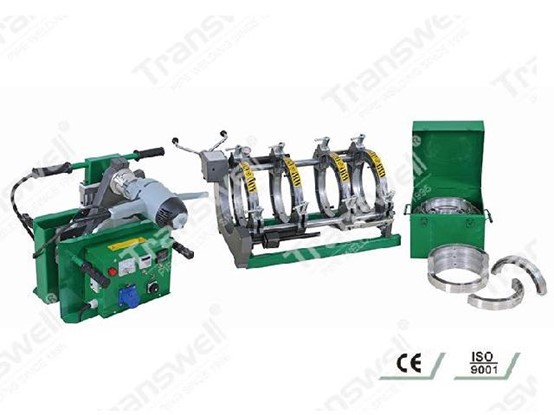

☆ 1 PCS machine

☆ 1 PCS heating plate

☆ 1 PCS milling tool

☆ 1 PCS holder stand

☆ 1 set of reducers D90*,D110,D125*,D140*,D160,D180*,D200,D225*
