Project Description

CHHJ-160SC Bench Socket Fusion Machine

☆ Removable tripod stand main frame, convenient for construction site and flat ground.

☆ Intelligent temperature control box, it can weld various material.

☆ Active tripod stand to support the pipe, ensure the high quality welding.

Fusing pipe scope 50MM~160MM
Rated voltage A.C 220/230V, 50/60Hz
Power 1800W
Working temperature 200~279℃±1%
Environment temperature -5℃~45℃
Applicable material PP-R,PE,PP,PB,PVDF
Net weight of machine 98.5kg
Carton size 900*860*550mm

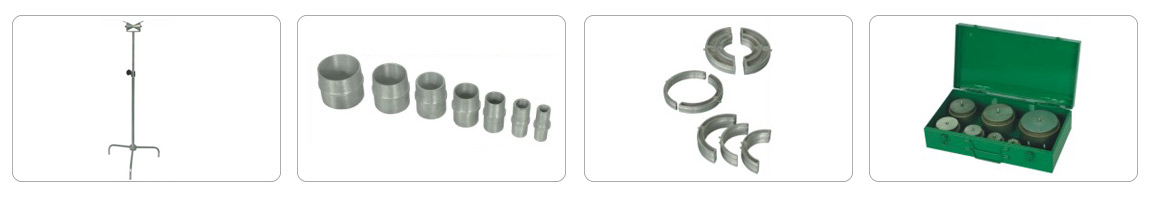

☆ 1 PCS workbench with electric control system

☆ 1 PCS tripod stand main frame

☆ 3 PCS pipe supporting stand

☆ 1 set of reducers D50*,D63,D75,D90,D110,D125,D140

☆ 1 set of exact self-centering spigots D50*,D63,D75,D90,D110,D125,D140,D160

☆ 1 set of sockets D50*,D63,D75,D90,D110,D125,D140,D160

☆ 1 PCS metal case
