Project Description

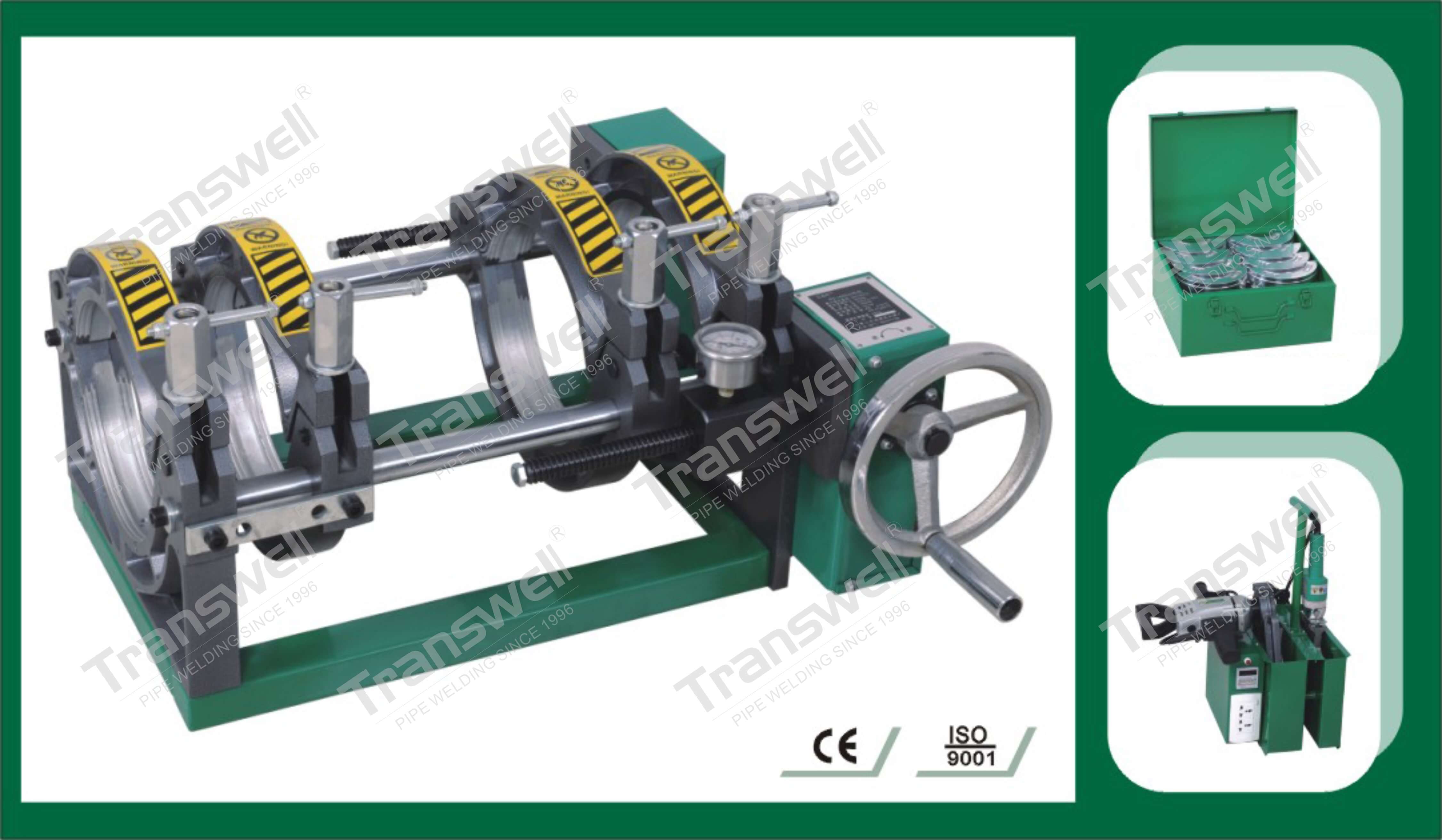

CHHJ-160SA Manual Butt Fusion Machine

☆ Aluminum alloy frame, stable metal base, simple structure, easy to operate, suitable for single and complex working situation.

☆ Portable milling instrument, miniature safety switch(avoid the machine suddenly start) and motor protection fuse.

☆ The PTFE coating heating plate, have intelligent temperature control box, ensure high quality welding.

☆ The holder of milling and heating plate.

Fusing pipe scope 50MM~160MM
Rated voltage A.C 220/230V, 50/60Hz
Power 2200W
Milling power 700W
Heating power 1500W
Working temperature 200℃~279℃(PE,PP,PB,PVDF)
Environment temperature -5℃~45℃
Weight of machine 78.8kg
Carton size 780*680*400mm

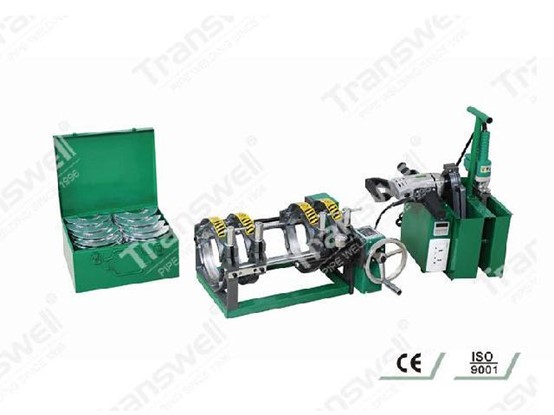

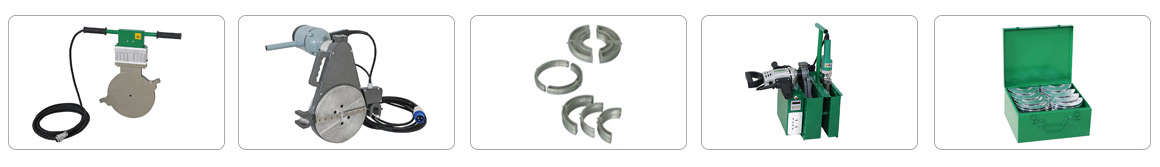

☆ 1 PCS machine

☆ 1 PCS heating plate

☆ 1 PCS milling tool

☆ 1 PCS holder stand

☆ 1 set of reducers D50*,D63,D75,D90,D110,D125*,D140*
